MCP2515 EF02037 CAN BUS Shield Controller Board Communication

MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
-44 %
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
MCP2515 EF02037 CAN BUS Shield Controller Board Communication
DescriptioncAN-BUS is due to its long distance, medium speed and high reliability general industrial bus. It is common in modern machine tools and as a bus diagnostic bus. This CAN-BUS module uses the MCP2515 CAN bus controller, the SPI interface and..

Write a review

Note: HTML is not translated!
Bad Good
  • Stock: In Stock
  • Model: INO-000017
ARDUINO ARDUINO
Products Sold 0
Based on 0 reviews. - Write a review
2,500.00DA
4,500.00DA
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product









Description

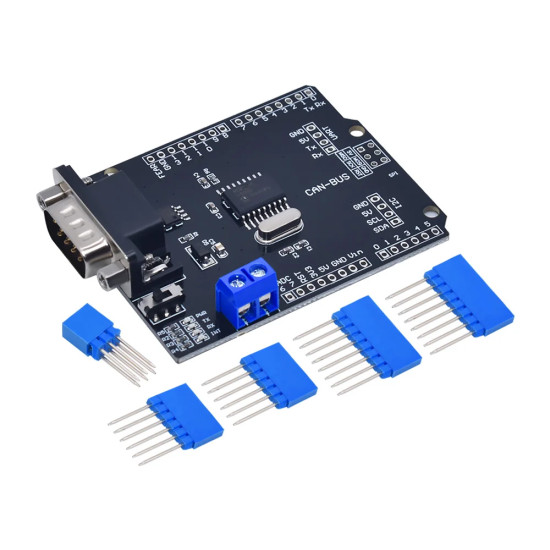

cAN-BUS is due to its long distance, medium speed and high reliability general industrial bus. It is common in modern machine tools and as a bus diagnostic bus. This CAN-BUS module uses the MCP2515 CAN bus controller, the SPI interface and the MCP2551 CAN transceiver to allow your Arduino and other singlechip to be easily connected. As the OBD-II conversion line is added to the OBD-II library, you can create a vehicle diagnostic device or a data recorder.

Characteristic:
  • CAN V2.0B is up to 1 Mb / S
  • The SPI interface is up to 10 MHz
  • Standard (11 – bit) and extended (29 – bit) data and remote frames
  • Two receiving buffers, priority message storage
  • Industrial standard 9 pin sub-D connector
  • Two LED indicator light
  • Voltage: 5V
  • Shape size: 68x53m
  •  weight: 50 grams
Tags: MCP2515 , EF02037 , CAN , BUS , Shield , Controller , Board , Communication
